我自托管的gitlab一直运行在16.10.0版本，这两天心血来潮想要升级，于是熟练得打开gitlab升级路线查询
https://gitlab-com.gitlab.io/support/toolbox/upgrade-path/?current=16.10.0
发现需要经历6次升级，那只好慢慢升了。
结果在升级到16.11.10之后，发现有好几个后台迁移任务，我知道这玩意执行很慢，所以就打算先睡觉，等第二天一早任务执行完后继续升级。结果第二天早上一看，这几个后台迁移任务居然一个都没有少。
当时的查询方向是后台迁移任务卡主，所以大约按照"gitlab background migration stack 0%"，进行了一圈google，按照官方文档https://docs.gitlab.com/update/background_migrations/?tab=From+the+database#check-for-pending-background-migrations的内容，手动挨个执行了升级脚本，没有报错全部都能执行完毕。
这时开始升级第二个版本，升级到17.1.8。此时安装时报错了，给出的错误是
Error executing action run on resource 'bash_hide_env[migrate gitlab-rails database]'
Mixlib::ShellOut::ShellCommandFailed
Expected process to exit with [0], but received '1'
---- Begin output of "bash" ----
STDOUT: rake aborted!
StandardError: An error has occurred, all later migrations canceled:
按照这个错误，我google到了gitlab官方的这个issue https://gitlab.com/gitlab-org/gitlab/-/issues/525265，但是issue里执行报错的migration和我并不是同一个，但是值得参考。
我报错的文件是https://gitlab.com/gitlab-org/gitlab/-/blob/adacc97ecff50e1dab70c16acd784a12dc7cdbe0/db/migrate/20240421143211_remove_container_registry_migration_workers.rb，所以按照issue里的指令，替换job class执行
WORKER_CLASSES = [
container_registry_migration_guard_worker
container_registry_migration_observer_worker
container_registry_migration_enqueuer_worker
]
.freeze
WORKER_CLASSES.each do |wc|
Gitlab::SidekiqSharding::Validator.allow_unrouted_sidekiq_calls do
Sidekiq.redis do |conn|
puts conn.hgetall("cron_job:#{wc}")
end
end
end
确实看到了这三个定时任务，并且也如issue所描述的其last_enqueue_time是"2025-02-29 16:00:08 +0000"这么一个并不存在的时间
再按照issue挨个执行
Gitlab::SidekiqSharding::Validator.allow_unrouted_sidekiq_calls do
Sidekiq.redis do |conn|
conn.hdel("cron_job:ensure_merge_requests_prepared_worker", "last_enqueue_time")
end
end
后升级完成。

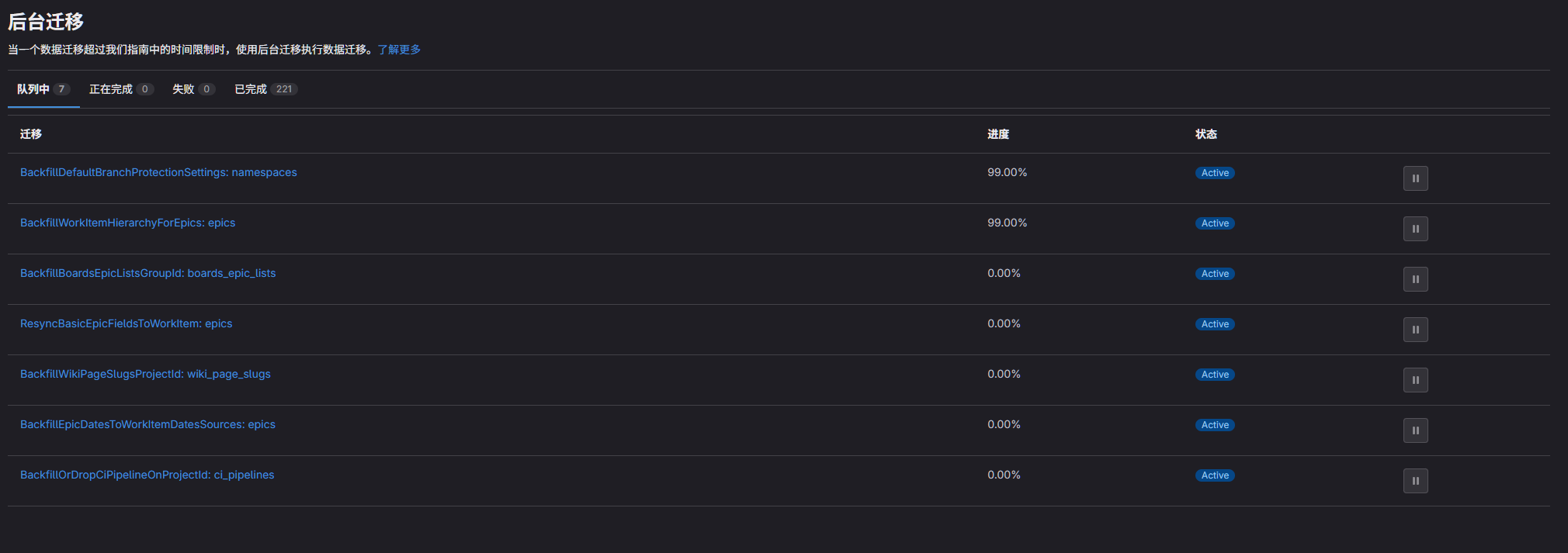

但是这时又有10个后台迁移任务在等待执行，并且等了好几个小时之后所有任务都还是0%的进度，但是这次并不急着睡觉，所以打算研究一下。

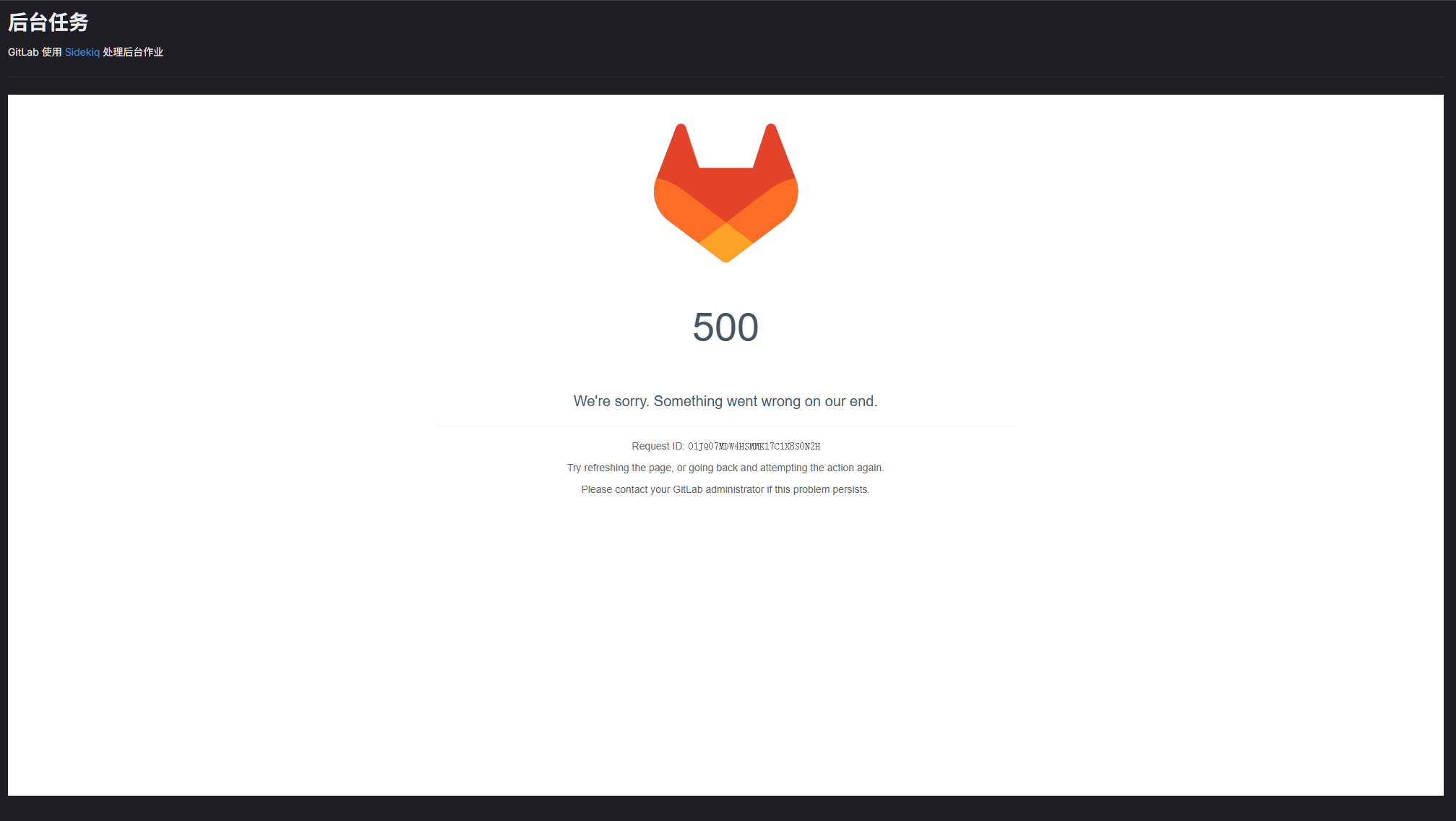

在后台瞎点的时候我发现，只要点进后台sidekiq的cron页面，就会直接500报错
并且此时查看sidekiq日志有报错信息
invalid date
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:631:in `parse'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:631:in `rescue in parse_enqueue_time'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:628:in `parse_enqueue_time'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:290:in `initialize'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:228:in `new'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:228:in `block in all'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:226:in `collect'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:226:in `all'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:534:in `destroy_removed_jobs'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:177:in `load_from_hash!'
/opt/gitlab/embedded/service/gitlab-rails/config/initializers/sidekiq.rb:9:in `load_cron_jobs!'
/opt/gitlab/embedded/service/gitlab-rails/config/initializers/sidekiq.rb:118:in `block in <top (required)>'
/opt/gitlab/embedded/service/gitlab-rails/vendor/gems/sidekiq-7.1.6/lib/sidekiq.rb:98:in `configure_server'
/opt/gitlab/embedded/service/gitlab-rails/config/initializers/sidekiq.rb:44:in `<top (required)>'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/engine.rb:667:in `load'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/engine.rb:667:in `block in load_config_initializer'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/activesupport-7.0.8.4/lib/active_support/notifications.rb:208:in `instrument'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/engine.rb:666:in `load_config_initializer'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/engine.rb:620:in `block (2 levels) in <class:Engine>'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/engine.rb:619:in `each'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/engine.rb:619:in `block in <class:Engine>'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/initializable.rb:32:in `instance_exec'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/initializable.rb:32:in `run'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/initializable.rb:61:in `block in run_initializers'
/opt/gitlab/embedded/lib/ruby/3.1.0/tsort.rb:228:in `block in tsort_each'
/opt/gitlab/embedded/lib/ruby/3.1.0/tsort.rb:350:in `block (2 levels) in each_strongly_connected_component'
/opt/gitlab/embedded/lib/ruby/3.1.0/tsort.rb:422:in `block (2 levels) in each_strongly_connected_component_from'
/opt/gitlab/embedded/lib/ruby/3.1.0/tsort.rb:431:in `each_strongly_connected_component_from'
/opt/gitlab/embedded/lib/ruby/3.1.0/tsort.rb:421:in `block in each_strongly_connected_component_from'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/initializable.rb:50:in `each'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/initializable.rb:50:in `tsort_each_child'
/opt/gitlab/embedded/lib/ruby/3.1.0/tsort.rb:415:in `call'
/opt/gitlab/embedded/lib/ruby/3.1.0/tsort.rb:415:in `each_strongly_connected_component_from'
/opt/gitlab/embedded/lib/ruby/3.1.0/tsort.rb:349:in `block in each_strongly_connected_component'
/opt/gitlab/embedded/lib/ruby/3.1.0/tsort.rb:347:in `each'
/opt/gitlab/embedded/lib/ruby/3.1.0/tsort.rb:347:in `call'
/opt/gitlab/embedded/lib/ruby/3.1.0/tsort.rb:347:in `each_strongly_connected_component'
/opt/gitlab/embedded/lib/ruby/3.1.0/tsort.rb:226:in `tsort_each'
/opt/gitlab/embedded/lib/ruby/3.1.0/tsort.rb:205:in `tsort_each'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/initializable.rb:60:in `run_initializers'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/application.rb:372:in `initialize!'
/opt/gitlab/embedded/service/gitlab-rails/config/environment.rb:7:in `<top (required)>'
<internal:/opt/gitlab/embedded/lib/ruby/site_ruby/3.1.0/rubygems/core_ext/kernel_require.rb>:37:in `require'
<internal:/opt/gitlab/embedded/lib/ruby/site_ruby/3.1.0/rubygems/core_ext/kernel_require.rb>:37:in `require'
/opt/gitlab/embedded/service/gitlab-rails/vendor/gems/sidekiq-7.1.6/lib/sidekiq/cli.rb:303:in `boot_application'
/opt/gitlab/embedded/service/gitlab-rails/vendor/gems/sidekiq-7.1.6/lib/sidekiq/cli.rb:42:in `run'
/opt/gitlab/embedded/service/gitlab-rails/vendor/gems/sidekiq-7.1.6/bin/sidekiq:31:in `<top (required)>'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/bin/sidekiq:25:in `load'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/bin/sidekiq:25:in `<top (required)>'
/opt/gitlab/embedded/lib/ruby/site_ruby/3.1.0/bundler/cli/exec.rb:58:in `load'
/opt/gitlab/embedded/lib/ruby/site_ruby/3.1.0/bundler/cli/exec.rb:58:in `kernel_load'
/opt/gitlab/embedded/lib/ruby/site_ruby/3.1.0/bundler/cli/exec.rb:23:in `run'
/opt/gitlab/embedded/lib/ruby/site_ruby/3.1.0/bundler/cli.rb:455:in `exec'
/opt/gitlab/embedded/lib/ruby/site_ruby/3.1.0/bundler/vendor/thor/lib/thor/command.rb:28:in `run'
/opt/gitlab/embedded/lib/ruby/site_ruby/3.1.0/bundler/vendor/thor/lib/thor/invocation.rb:127:in `invoke_command'
/opt/gitlab/embedded/lib/ruby/site_ruby/3.1.0/bundler/vendor/thor/lib/thor.rb:527:in `dispatch'
/opt/gitlab/embedded/lib/ruby/site_ruby/3.1.0/bundler/cli.rb:35:in `dispatch'
/opt/gitlab/embedded/lib/ruby/site_ruby/3.1.0/bundler/vendor/thor/lib/thor/base.rb:584:in `start'
/opt/gitlab/embedded/lib/ruby/site_ruby/3.1.0/bundler/cli.rb:29:in `start'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/bundler-2.5.11/exe/bundle:28:in `block in <top (required)>'
/opt/gitlab/embedded/lib/ruby/site_ruby/3.1.0/bundler/friendly_errors.rb:117:in `with_friendly_errors'
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/bundler-2.5.11/exe/bundle:20:in `<top (required)>'
/opt/gitlab/embedded/bin/bundle:25:in `load'
/opt/gitlab/embedded/bin/bundle:25:in `<main>'
{"severity":"INFO","time":"2025-03-22T16:18:52.348Z","message":"stopped","memwd_reason":"background task stopped","memwd_handler_class":"Gitlab::Memory::Watchdog::Handlers::SidekiqHandler","memwd_sleep_time_s":3,"pid":1680601,"worker_id":"sidekiq_0","memwd_rss_bytes":428371968,"retry":0}
{"severity":"INFO","time":"2025-03-22T16:18:57.392Z","message":"A worker terminated, shutting down the cluster"}
还是熟悉的错误，直觉告诉我应该是sidekiq的cron里还有2025年2月29日的日期。但是我并没有使用过sidekiq，所以对其原理并不是很了解，只好先去翻翻gitlab的文档。在其中找到了Troubshoting Sidekiq的说明https://docs.gitlab.com/administration/sidekiq/sidekiq_troubleshooting/#manually-trigger-a-cron-job 于是摸到gitlab-rake console，执行Sidekiq::Cron::Job.all，但是还是会报错
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:631:in `parse': invalid date (Date::Error)
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:631:in `rescue in parse_enqueue_time'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:628:in `parse_enqueue_time'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:290:in `initialize'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:228:in `new'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:228:in `block in all'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:226:in `collect'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:226:in `all'
from (irb):2:in `<main>'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/commands/console/console_command.rb:74:in `start'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/commands/console/console_command.rb:19:in `start'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/commands/console/console_command.rb:106:in `perform'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/thor-1.3.1/lib/thor/command.rb:28:in `run'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/thor-1.3.1/lib/thor/invocation.rb:127:in `invoke_command'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/thor-1.3.1/lib/thor.rb:527:in `dispatch'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/command/base.rb:87:in `perform'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/command.rb:48:in `invoke'
... 4 levels...
/opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:629:in `strptime': invalid date (Date::Error)
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:629:in `parse_enqueue_time'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:290:in `initialize'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:228:in `new'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:228:in `block in all'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:226:in `collect'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/sidekiq-cron-1.12.0/lib/sidekiq/cron/job.rb:226:in `all'
from (irb):2:in `<main>'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/commands/console/console_command.rb:74:in `start'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/commands/console/console_command.rb:19:in `start'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/commands/console/console_command.rb:106:in `perform'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/thor-1.3.1/lib/thor/command.rb:28:in `run'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/thor-1.3.1/lib/thor/invocation.rb:127:in `invoke_command'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/thor-1.3.1/lib/thor.rb:527:in `dispatch'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/command/base.rb:87:in `perform'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/command.rb:48:in `invoke'
from /opt/gitlab/embedded/lib/ruby/gems/3.1.0/gems/railties-7.0.8.4/lib/rails/commands.rb:18:in `<top (required)>'
... 3 levels...
看来没法通过程序解决了，似乎sidekiq无论如何都会尝试去解析这个并不存在的时间然后报错。只能从存储入手了。

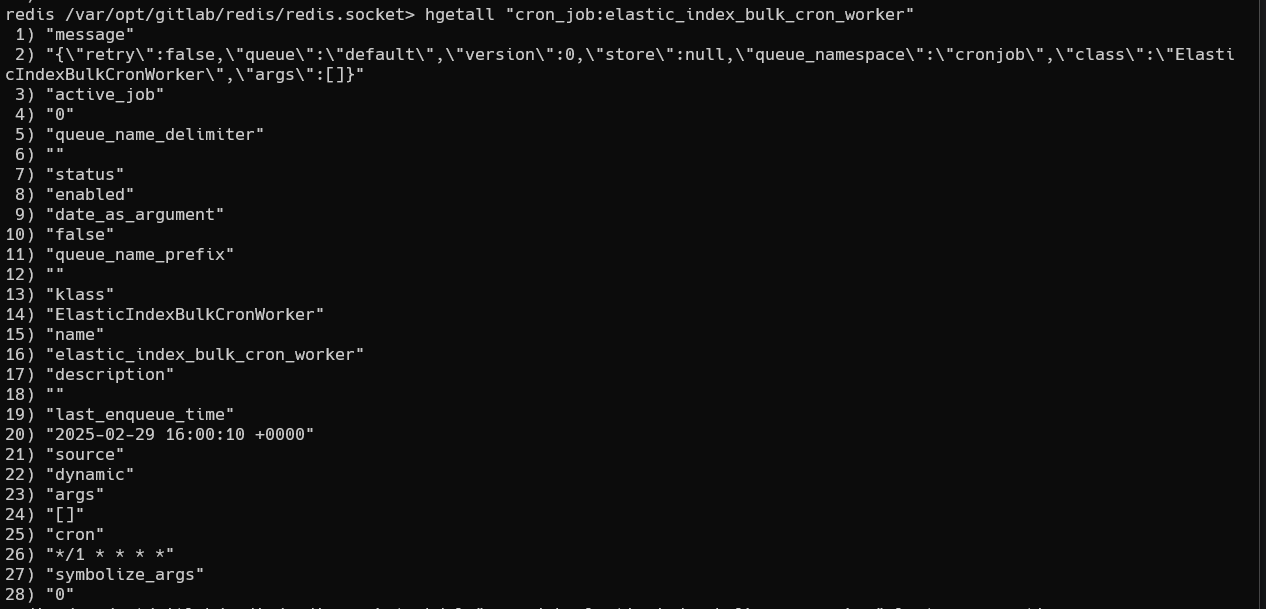

简单阅读了一下gitlab和sidekiq的源码，发现这里的cron是存储在redis里的，所以可以使用gitlab-redis-cli命令摸到gitlab的redis里，然后在redis离手动scan cron_job:*，找到了hash类型的key
scan 0 cron_job:* type hash
果然被我找到了好几个last_enqueue_time是2月29日的记录
于是用scan找到所有hash类型的key，其实就是cron_job:开头，并且没有其他suffix结尾的，挨个执行hdel key last_enqueue_time
大概在删了20个之后是在受不了手动处理了，感觉没完没了。所以掏出github copilot，让它给gitlab-rails console写了一个脚本
# This script is intended to be run in the GitLab Rails console
# It assumes that the Redis connection is already configured and available
# Initialize cursor for SCAN
cursor = "0"
deleted_count = 0
begin
# Fetch a batch of keys with the prefix 'cron_job:' and type 'hash'
cursor, keys = Gitlab::Redis::SharedState.with { |redis| redis.scan(cursor, match: 'cron_job:*', count: 100, type: 'hash') }
keys.each do |key|
# Fetch the 'last_enqueue_time' attribute
last_enqueue_time = Gitlab::Redis::SharedState.with { |redis| redis.hget(key, 'last_enqueue_time') }
# Check if 'last_enqueue_time' starts with '2025-02-29'
if last_enqueue_time && last_enqueue_time.start_with?('2025-02-29')
# Log the key and attribute for dry run
puts "Would delete 'last_enqueue_time' from key: #{key} with value: #{last_enqueue_time}"
# Uncomment the next line to actually delete the attribute
# Gitlab::Redis::SharedState.with { |redis| redis.hdel(key, 'last_enqueue_time') }
deleted_count += 1
# else
# # Log the key and attribute for dry run
# puts "Skipping key: #{key} with 'last_enqueue_time': #{last_enqueue_time}"
end
end
end while cursor != "0"
puts "Total keys deleted: #{deleted_count}"
最终输出了Total keys deleted: 40，看上去还有40个key需要处理。
执行完成后，终于能打开sidekiq的cron界面了，并且稍等了几分钟后发现后台迁移任务也开始执行了
